smart lighting control.
Device categories:
Wireless Action Elements
Elements designed for wireless remote switching of devices.
Available for all environments, including demanding ones.
Wired Action Controls
Wired elements designed for direct control of the system.
Providing reliable and fast communication.
Wireless Sensor Elements
Wireless elements designed to sense surrounding conditions
and control the system accordingly.
Wireless Controls
Smart wireless devices used to control the system.
Enabling simple yet detailed lighting control.
Wired Controls
Wired controls for direct system management.
Providing reliable and fast communication.
Control IT Infrastructure
Smart devices serving as the system's backbone,
enabling intelligent and energy-efficient lighting.
Wireless Action Elements
Savee Power Switch
Element designed for phase switching control via a single output channel with a continuous current of up to 6 A and a peak current of up to 8 A. Can be used for automated switching of lights, machines, and production lines.
| Supply Voltage | 110/230V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 1.6 W |
| Max. Switching Current | 6 A |
| Max. Peak Switching Current | 8 A |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -10°C to 55°C |
| Protection Rating | IP40 |
| Dimensions | 82 x 82 x 28 mm |
Savee Power Switch – 2 Channels
Element designed for phase switching control via two output channels with a continuous current of up to 3 A per output and a peak current of up to 4 A per output. Can be used for automated switching of lights, machines, and production lines.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 1.2 W |
| Max. Switching Current | 3 A per output |
| Max. Peak Switching Current | 4 A per output |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -10°C to 55°C |
| Protection Rating | IP40 |
| Dimensions | 82 x 82 x 28 mm |
Savee Digital Dimmer
Element designed for controlling luminaires with a DALI driver via a single controllable non-addressable DALI output. Up to 64 DALI drivers can be connected to each element. Can be used for automated brightness intensity adjustment in steps of 10 %.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 1 W |
| Max. Number of DALI Devices | 64 devices |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -10°C to 55°C |
| Protection Rating | IP40 |
| Dimensions | 82 x 82 x 28 mm |
Savee Digital Dimmer – 2 Channels
Element designed for controlling luminaires with a DALI driver via two controllable non-addressable DALI outputs. Up to 32 DALI drivers can be connected to each output. Individual channels can be virtually linked via the application to enable biodynamic lighting control.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 1 W |
| Number of DALI Outputs | 2 outputs |
| Max. Number of DALI Devices | 32 devices per output |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -10°C to 55°C |
| Protection Rating | IP40 |
| Dimensions | 82 x 82 x 28 mm |
Savee Digital Dimmer – 4 Channels
Element designed for controlling luminaires with a DALI driver via four controllable non-addressable DALI outputs. Up to 16 DALI drivers can be connected to each output. Individual channels can be virtually linked via the application to enable biodynamic lighting control.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 1 W |
| Number of DALI Outputs | 4 outputs |
| Maximum Number of DALI Devices | 16 devices per output |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -10°C to 55°C |
| Protection Rating | IP40 |
| Dimensions | 82 x 82 x 28 mm |
Savee Power Switch IP66
Element designed for phase switching control via a single output channel with a continuous current of up to 6 A and a peak current of up to 8 A. Can be used for automated switching of lights, machines, and production lines. This is an outdoor version.
| Supply Voltage | 110/230V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 1.6 W |
| Max. Switching Current | 6 A |
| Max. Peak Switching Current | 8 A |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -40°C to 65°C |
| Protection Rating | IP66 |
| Dimensions | 82 x 82 x 54 mm |
Savee Power Switch – 2 Channels IP66
Element designed for phase switching control via two output channels with a continuous current of up to 3 A per output and a peak current of up to 4 A per output. Can be used for automated switching of lights, machines, and production lines. This is an outdoor version.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 1.2 W |
| Max. Switching Current | 3 A per output |
| Max. Peak Switching Current | 4 A per output |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -40°C to 65°C |
| Protection Rating | IP66 |
| Dimensions | 82 x 82 x 54 mm |
Savee Digital Dimmer IP66
Element designed for controlling luminaires with a DALI driver via a single controllable non-addressable DALI output. Up to 64 DALI drivers can be connected to each element. Can be used for automated brightness intensity adjustment in steps of 10 %. This is an outdoor version.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 1 W |
| Max. Number of DALI Devices | 64 devices |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -40°C to 65°C |
| Protection Rating | IP66 |
| Dimensions | 82 x 82 x 54 mm |
Savee Digital Dimmer – 2 Channels IP66
Element designed for controlling luminaires with a DALI driver via two controllable non-addressable DALI outputs. Up to 32 DALI drivers can be connected to each output. Individual channels can be virtually linked via the application to enable biodynamic lighting control. This is an outdoor version.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 1 W |
| Number of DALI Outputs | 2 outputs |
| Max. Number of DALI Devices | 32 devices per output |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -40°C to 65°C |
| Protection Rating | IP66 |
| Dimensions | 82 x 82 x 54 mm |
Savee Digital Dimmer – 4 Channels IP66
Element designed for controlling luminaires with a DALI driver via four controllable non-addressable DALI outputs. Up to 16 DALI drivers can be connected to each output. Individual channels can be virtually linked via the application to enable biodynamic lighting control. This is an outdoor version.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 1 W |
| Number of DALI Outputs | 4 outputs |
| Maximum Number of DALI Devices | 16 devices per output |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -40°C to 65°C |
| Protection Rating | IP66 |
| Dimensions | 82 x 82 x 54 mm |
Savee Digital Dimmer Zhaga
Element designed for controlling an outdoor luminaire with a DALI driver and Zhaga connector. The element is installed in a Zhaga socket and can be used for automated brightness intensity adjustment in steps of 10 %.
| Supply Voltage | 24 V DC |
|---|---|
| Standby Power Consumption | 1 W |
| Max. Number of DALI Devices | 1 light |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -40°C to 65°C |
| Protection Rating | IP66 |
Savee Digital Dimmer NEMA
Element designed for controlling an outdoor luminaire with a DALI driver and NEMA connector. The element is installed in a NEMA socket and can be used for automated brightness intensity adjustment in steps of 10 %.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 1 W |
| Max. Number of DALI Devices | 1 light |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -40°C to 65°C |
| Protection Rating | IP66 |
| Number of Contacts | 7 contacts |
Wired Action Controls

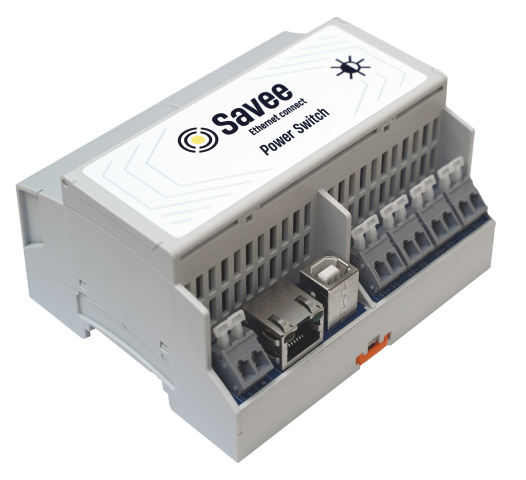

Savee EC Relay Module
Wired device for distribution box installation enabling switching of up to six devices – relays or contactors – for controlling lights, lighting groups, or machinery. Communicates directly with the Savee server via Ethernet. Features six switched outputs with a max. peak current of 4 A and a recommended continuous load of 3 A per output.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 2.5 W |
| Power Dissipation | 3 W |
| Number of Switched Outputs | 6 outputs |
| Max. Switching Current | 3 A per output |
| Max. Peak Switching Current | 4 A per output |
| Communication Interface | Ethernet |
| Operating Temperature Range | -10 °C to 65 °C |
| Protection Rating | IP20 |
| Dimensions | 107.6 x 89.7 x 60.7 mm |

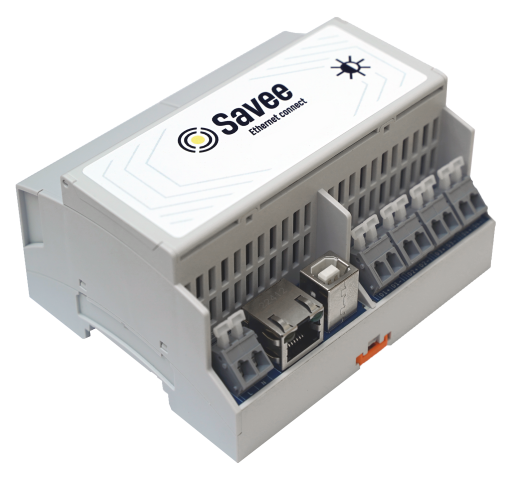

Savee EC Digital Dimmer
Wired device for distribution box installation providing lighting intensity regulation using the DALI protocol. Communicates directly with the Savee server via Ethernet and supports up to 64 luminaires per bus with group or individual control. Lighting intensity can be regulated in the range of 0–100 % in steps of 10 %.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 2.1 W |
| Power Dissipation | 2.6 W |
| Number of DALI Outputs | 4 outputs |
| Maximum Number of DALI Devices | 64 luminaires per output |
| Communication Interface | Ethernet |
| Operating Temperature Range | -10 °C to 65 °C |
| Protection Rating | IP20 |
| Dimensions | 107.6 x 89.7 x 60.7 mm |
Wireless Sensor Elements
Savee Luxmeter
Element designed for measuring light intensity in a room with a measuring range of 0–3000 lux. Can be used for automated brightness control of luminaires based on ambient light levels. Luminaires without a dimmable driver can be automatically switched on and off.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 0.9 W |
| Measurement Range | 0 lx to 3000 lx |
| Measurement Accuracy | 5 % |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -40°C to 65°C |
| Protection Rating | IP66 |
| Dimensions | 82 x 82 x 54 mm |
Savee Luxmeter IP66
Element designed for measuring light intensity in outdoor environments with a measuring range of 0–3000 lux. Can be used for automated brightness control of luminaires based on ambient light levels. Luminaires without a dimmable driver can be automatically switched on and off.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 0.9 W |
| Measurement Range | 0 lx to 3000 lx |
| Measurement Accuracy | 5 % |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -40°C to 65°C |
| Protection Rating | IP66 |
| Dimensions | 82 x 82 x 54 mm |
Wireless Controls
Savee Button Module – 5 Inputs
Control module containing five configurable button inputs. This module is supplied as electronics without an enclosure. The element can be placed in a plastic box containing buttons and used to control lights and machinery.
Savee Button Module – 15 Inputs
Control module containing fifteen configurable button inputs. This module is supplied as electronics without an enclosure. The element can be placed in a plastic box containing buttons and used to control lights and machinery.
Savee Industrial Buttons
Industrial control panel module containing five buttons with LED status indication. A mechanically robust design intended for industrial halls and more demanding environments.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 0.8 W |
| Number of Buttons | 5 |
| Press Indication | LED Indication |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -10°C to 55°C |
| Protection Rating | IP66 |
| Dimensions | 252 x 80 x 70 mm |
Savee Virtual Buttons 5"
Control five-inch TFT display with up to four virtual buttons in a modern design, suitable for office environments. This display can be mounted in place of a two-position wall switch.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 8.2 W |
| Communication Interface | Ethernet, WiFi |
| Mounting Method | Flush-mounted |
| Operating Temperature Range | 0 °C to 40 °C |
| Display Size | 5" (12.7 cm) |
| Protection Rating | IP30 |
| Dimensions | 150 x 81 x 70 mm |
Savee PIR Module
Element designed for connecting a PIR sensor to the system. This element is connected to the PIR sensor output and serves as a converter of sensor information to the application. A time delay can be set in the application without directly modifying the sensor.
Wired Controls
Savee EC Input Module AC
Wired device for distribution box installation designed to monitor up to eight independent AC input channels. Each channel detects the presence of an AC signal and triggers actions based on the system configuration. Enables integration of external switches, sensors, or other AC signals into the automation system. Communicates directly with the Savee server via Ethernet.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 1.7 W |
| Input Detection Voltage | 110/230 V AC, 50/60 Hz |
| Number of Detection Inputs | 8 inputs |
| Communication Interface | Ethernet |
| Operating Temperature Range | -10 °C to 65 °C |
| Protection Rating | IP20 |
| Dimensions | 107.6 x 89.7 x 60.7 mm |
Savee EC Input Module DC
Wired device for distribution box installation designed to monitor up to eight independent DC input channels. Each channel detects the presence of a DC signal and triggers actions based on the system configuration. Enables integration of external switches, sensors, or other DC signals into the automation system. Communicates directly with the Savee server via Ethernet.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 1.7 W |
| Input Detection Voltage | 5 V DC to 24 V DC |
| Number of Detection Inputs | 8 inputs |
| Communication Interface | Ethernet |
| Operating Temperature Range | -10 °C to 65 °C |
| Protection Rating | IP20 |
| Dimensions | 107.6 x 89.7 x 60.7 mm |
Control IT Infrastructure
Savee Gateway
Wireless communication gateway designed for communication between the server and the end wireless elements of the Savee solution. The gateway communicates on the LAN network via an Ethernet interface and is powered by passive PoE. The gateway includes an integrated antenna.
| Supply Voltage | 12 V to 48 V (Passive PoE) |
|---|---|
| Standby Power Consumption | 1 W |
| Communication Interface | Ethernet |
| Communication Band | 868 MHz |
| Transmission Power | -9 dBm to 12 dBm |
| Operating Temperature Range | -10°C to 55°C |
| Protection Rating | IP40 |
| Dimensions | 82 x 82 x 28 mm |
Savee Gateway – External Antenna Connector
Wireless communication gateway designed for communication between the server and the end wireless elements of the Savee solution. The gateway communicates on the LAN network via an Ethernet interface and is powered by passive PoE. The gateway includes an SMA connector for connecting an external antenna.
Savee Touch Display 10"
Control touch screen designed for easy system management via a virtual building floor plan. The touch screen can be mounted on a wall in office environments. It communicates on the LAN network via Ethernet or Wi-Fi and is powered by passive PoE.
| Supply Voltage | 12 V DC, IEEE 802.3 at (Active PoE) |
|---|---|
| Power Consumption | 18 W |
| Communication Interface | Ethernet, WiFi |
| Mounting Method | Wall-mounted |
| Design | Anti-vandal |
| Operating System | Android |
| Operating Temperature Range | 0°C to 45°C |
| Display Size | 10.1" (25.5 cm) |
| Dimensions | 255 x 172 x 30.5 mm |
Savee HW Industrial Server
Industrial server with the Savee application installed, located in the building's local network. Together with the application, the server controls all connected system elements and ensures the execution of configured automations and time schedules.
| Supply Voltage | 110/230 V AC, 50/60 Hz |
|---|---|
| Standby Power Consumption | 20 W |
| Processor | Intel N50 |
| RAM | 8 GB DDR5 |
| Storage | 160 GB M.2 SSD |
| Communication Interface | Ethernet |
| Operating System | Linux (Debian) |
| Operating Temperature Range | 0°C to 60°C |
| Protection Rating | IP20 |
| Dimensions | 36 x 147 x 165 mm |
Savee Gateway IP66
Wireless communication gateway designed for communication between the server and the end wireless elements of the Savee solution. The gateway communicates on the LAN network via an Ethernet interface and is powered by passive PoE. The gateway includes an integrated antenna and is designed for outdoor installation.
Get in touch.
Key elements and technologies of DALI lighting control for modern lighting management
Modern lighting requires intelligent infrastructure – and that is exactly what DALI lighting control in conjunction with the Savee system provides. Our hardware components enable easy connection to the DALI interface and ensure precise control over every light point.
Thanks to the DALI standard, lighting intensity can be smoothly regulated, the status of luminaires can be monitored, and energy consumption can be optimized. Savee also adds online access, remote management, and clear analytics.
Our control units, gateways, and sensors are fully compatible with DALI and support rapid integration into existing lighting systems. DALI lighting control can be deployed in city streets, industrial areas, parking lots, and commercial buildings.
The system is scalable – from tens to thousands of light points. What's more, in conjunction with Savee, you get full control in one user-friendly environment. Choose DALI lighting control, which saves energy, extends the life of luminaires, and provides a realistic overview and savings.
